MSI RTX 5070 12G VENTUS 3X OC
MSI NVIDIA GeForce RTX 5070 12GB VENTUS 3X OC Blackwell Graphics Card
MSI NVIDIA GeForce RTX 5070 VENTUS 3X OC 12GB GDDR7 Ray-Tracing Graphics Card, DLSS 4, 6144 Core, 2557 MHz Boost
MSI GeForce RTX 5070 Ventus 3X OC 12GB GDDR7 Graphics Card
Manufacturers Code: GEFORCE RTX 5070 12G VENTUS 3X OC
EAN: 4711377308281
GeForce RTX 5070 VENTUS 3X OC 12GB GDDR7
Blackwell Graphics Card from MSI
Take The Essentials
VENTUS focuses on the essentials to tackle any challenge. Its efficient thermal solution is encased in a resilient enclosure with a neutral aesthetic, allowing this sleek graphics card to integrate seamlessly into any build.
The MSI GeForce RTX 5070 12G VENTUS 2X OC is a high-performance graphics card built on NVIDIA's cutting-edge Blackwell architecture
Featuring 6144 CUDA cores and 12GB of ultra-fast GDDR7 memory, this GPU delivers exceptional gaming and creative capabilities. The card boasts a PCIe 5.0 interface and offers versatile connectivity with three DisplayPort v2.1b ports and one HDMI 2.1b port. Equipped with MSI's TORX FAN 5.0 technology and a trio-fan cooling system, the VENTUS 3X OC ensures optimal thermal management during intense gaming sessions. The card's robust design includes a metal backplate for reinforcement and incorporates MSI's Zero Frozr technology, which stops the fans at low temperatures for silent operation.
6144 Cuda Cores : 2557 MHz Boost Clock : 12GB GDDR7 Memory : 3 Fan Frozr Technology
GeForce RTX 5070 12G VENTUS 3X OC Features:
Powered by the NVIDIA Blackwell architecture and DLSS 4
SFF-Ready Enthusiast GeForce Card.
Core Clock:
Extreme Performance: 2557 MHz (MSI Centre)
Boost: 2542 MHz
TORX Fan 5.0: Fan blades linked by ring arcs work to stabilize and maintain high-pressure airflow.
Nickel-plated Copper Baseplate: Heat from the GPU and memory is swiftly captured by a nickel-plated copper baseplate and transferred.
Core Pipe feature a square design to maximize contact with the GPU baseplate for optimal thermal management.

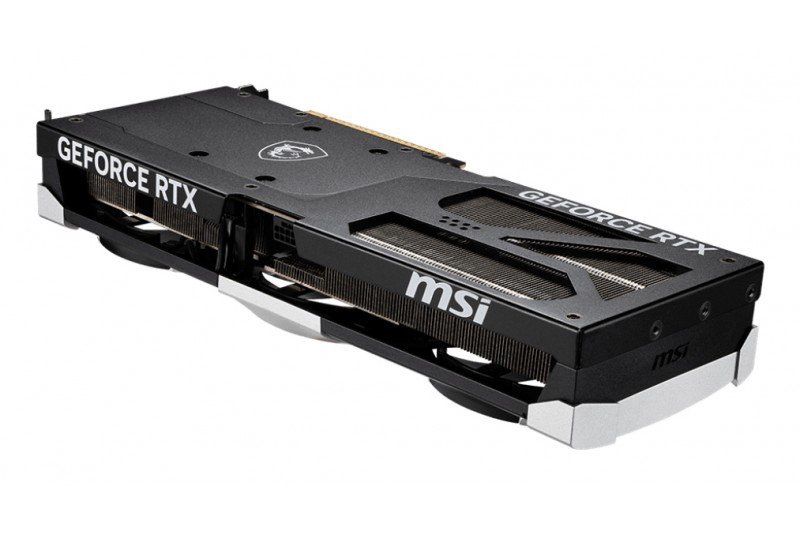

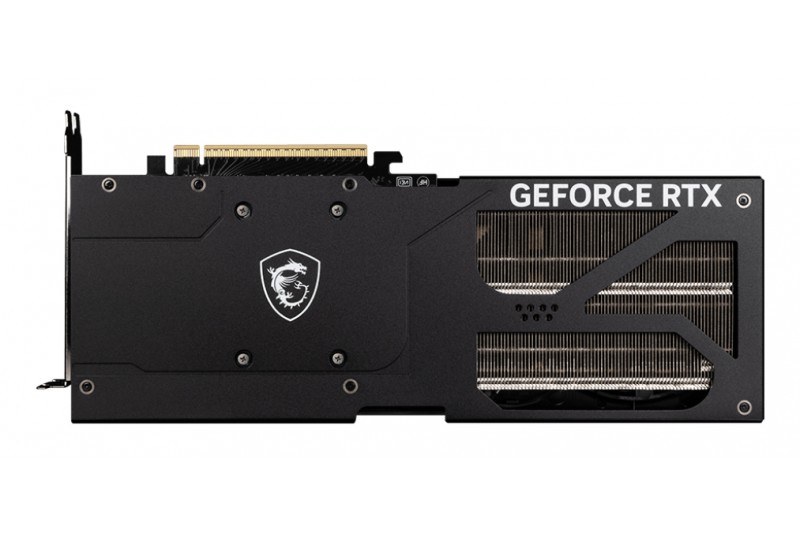

Metal Backplate: A sturdy metal backplate strengthens the graphics card while the airflow vent design reduces excess heat.
MSI Centre: The exclusive MSI Centre software lets you monitor, tweak and optimize MSI products in real-time.
Afterburner software takes full control with the most recognized and widely used graphics card overclocking software in the world.
NVIDIA Blackwell Architecture
Fifth-Gen Tensor Cores
Max AI performance with FP4 and DLSS 4.
New Streaming Multiprocessors
Optimised for neural shaders.
Fourth-Gen Ray Tracing Cores
Built for Mega Geometry.
The Ultimate in Ray Tracing and AI
Game-Changing Realism
The NVIDIA Blackwell architecture unlocks the game-changing realism of full ray tracing. Experience cinematic quality visuals at unprecedented speed powered by GeForce RTX 50 Series with fourth-gen RT Cores and breakthrough neural rendering technologies accelerated with fifth-gen Tensor Cores.
Supreme Speed. Superior Visuals. Powered by AI
NVIDIA DLSS 4
DLSS is a revolutionary suite of neural rendering technologies that uses AI to boost FPS, reduce latency, and improve image quality. The latest breakthrough, DLSS 4, brings new Multi Frame Generation and enhanced Ray Reconstruction and Super Resolution, powered by GeForce RTX™ 50 Series GPUs and fifth-generation Tensor Cores. DLSS on GeForce RTX is the best way to play, backed by an NVIDIA AI supercomputer in the cloud constantly improving your PC’s gaming capabilities.
Compete at Warp Speed
NVIDIA Reflex 2
Reflex technologies optimise the graphics pipeline for ultimate responsiveness, providing faster target acquisition, quicker reaction times, and improved aim precision in competitive games. Reflex 2 introduces Frame Warp (coming soon!), which further reduces latency based on the game’s latest mouse input.
Take Your Creativity Further with RTX
NVIDIA Studio is your creative advantage. GeForce RTX 50 Series GPUs unlock transformative performance in video editing, 3D rendering, and graphic design. Experience RTX accelerations in top creative apps, world-class NVIDIA Studio drivers engineered and continually updated to provide maximum stability, and a suite of exclusive tools that harness the power of RTX for AI-assisted creative workflows.
50-Series Additional Features and Benefits
Game Ready and Studio Drivers
GeForce Game Ready and Studio Drivers deliver the best experience for your favourite games. They’re finely tuned in collaboration with developers and extensively tested across thousands of hardware configurations for maximum performance and reliability.
NVIDIA App
The essential companion for PC gamers and creators. Keep your PC up to date with the latest NVIDIA drivers and technology. Optimise games and applications with a new unified GPU control center, and discover the latest NVIDIA apps.
NVIDIA G-SYNC
NVIDIA G-SYNC is a suite of the ultimate display technologies. They offer enhanced motion clarity, smooth tear-free immersion, ultra-high frame rates, and more.
Virtual Reality
The highest-performance graphics deliver the smoothest, most immersive VR experiences.
Chipset Manufacturer NVIDIA
Chipset Model Name GeForce RTX
Chipset Model Number 5070
Chipset Additional Information VENTUS 3X OC
Base Chip Clock 2165 MHz
Graphics Core CUDA
Number of Cores 6144
Memory
Memory Size 12288 MB
Memory Clock 28 Gbps
Memory Type GDDR7
Memory Width 192 bit
Memory Bandwidth 672.2 GB/s
Interfaces/Ports
Video Card Bus Type PCI Express
Video Card Bus Version 5.0 x16
HDMI Port 1 x HDMI 2.1b
DisplayPort 3 x DisplayPort 2.1a
Resolution
Multiple Monitor Support (Max) Yes (4)
Maximum Resolution 7680 x 4320
System Requirements
System Requirements 1 x PCI Express 5.0 x16 slot
Electrical
Power Connector 1 x 12V-2x6 or 2 x 8-pin PCIe
Power Consumption 250 W
Minimum Recommended PSU 650 W
Physical
Form Factor Graphics Card
Warranty
Warranty 3 Years
Key Features
Interface Type PCI Express 5.0 x16
Config Gaming x8 (CB/CCL) No
Graphics Memory Type GDDR7
Main Colour Black
VGA Connection No
DVI Connection No
HDMI Connection Yes
Graphics Usability Gaming
DisplayPort Connection Yes
Direct X Support Direct X 12
Cooler Type Dynamic Fan Inc. 0dB Mode
Low Profile No
NVIDIA GeForce RTX 5070
PCIe Pin Type 12+4-Pin (16-Pin)
Cooling Technology Dynamic Fan Inc. 0dB Mode
VR Ready NVIDIA
Power Requirement (auto) 250 W
GPU Power (TDP) 250 W
Graphics card count 1
PCI Express Power Pins (female) 16
PCIe Physical Slot required 16
12VHPWR 16-pin Connector Yes
AI Ready Yes
12V-2x6 Rating 300W
Graphics
Graphics Chipset GeForce RTX 5070
Graphics Device
G-Sync Yes
Item Details
Manufacturer MSI
Manufacturer Code RTX 5070 12G VENTUS 3X OC
Condition New
